I started this kit and I must say that for the most part it's been an enjoyable experience. Like any kit it's not 'perfect'. So, first, the bad, which is minor, really. The major niggle is the prop, which has woefully undersized blades. Eduard makes a PE set (#53153) for this kit which includes replacement blades. On a side note, Eduard's instructions show a template which is not included on the actual fret. I opted to use a prop from the spare's box. Maybe not 100% accurate, but much better looking than the kit supplied one. The other place where the kit falls short are the parts for the tow cable which are pitiful. Again replaced with some from the armor spares box.

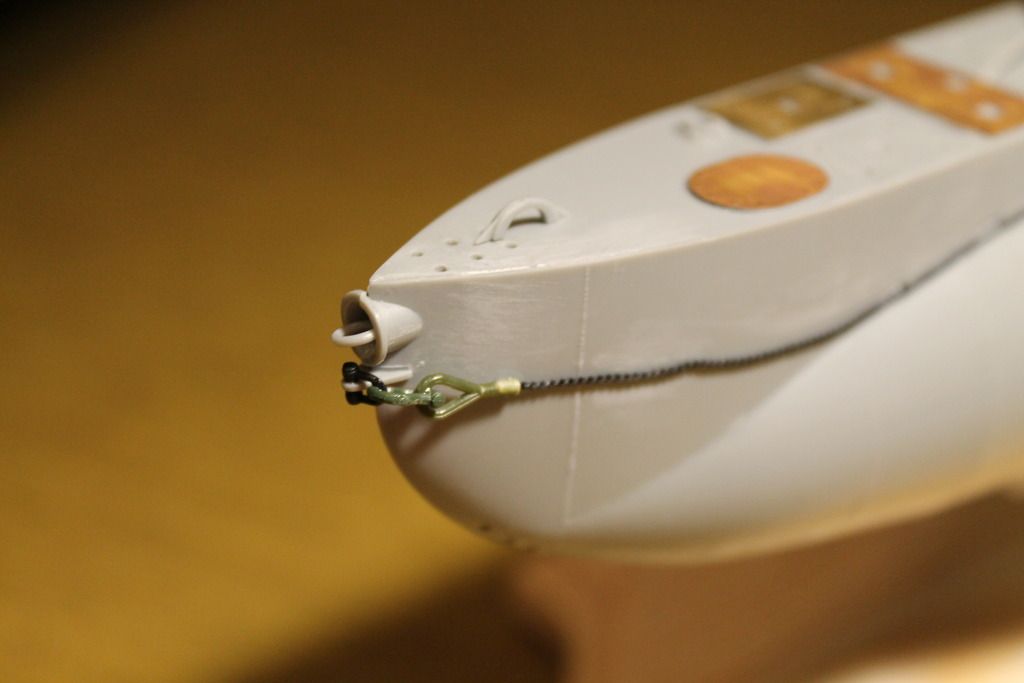

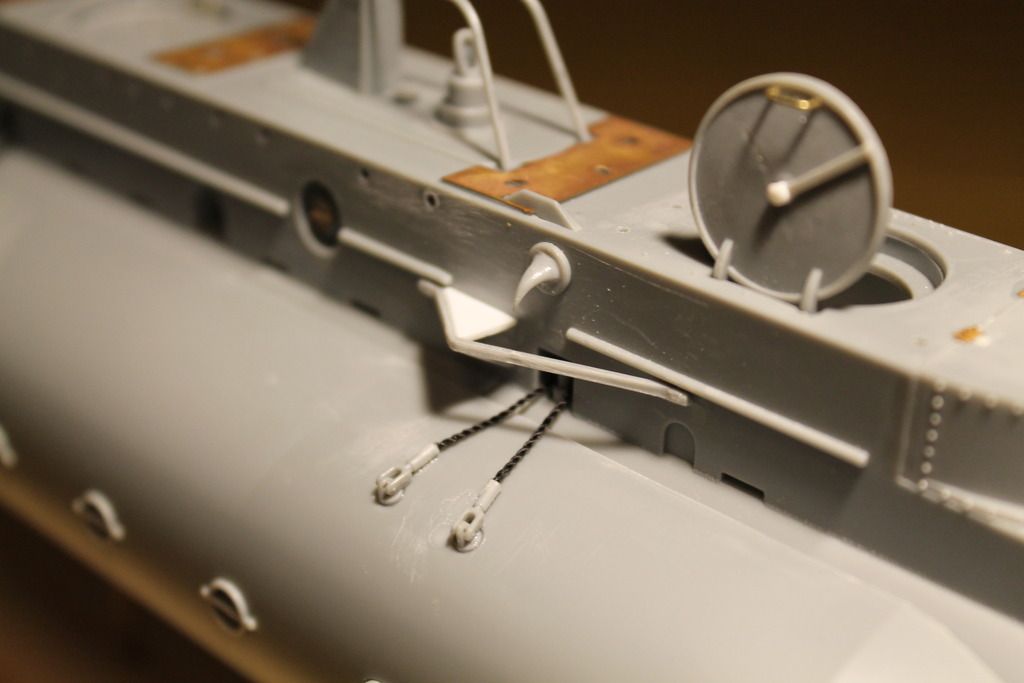

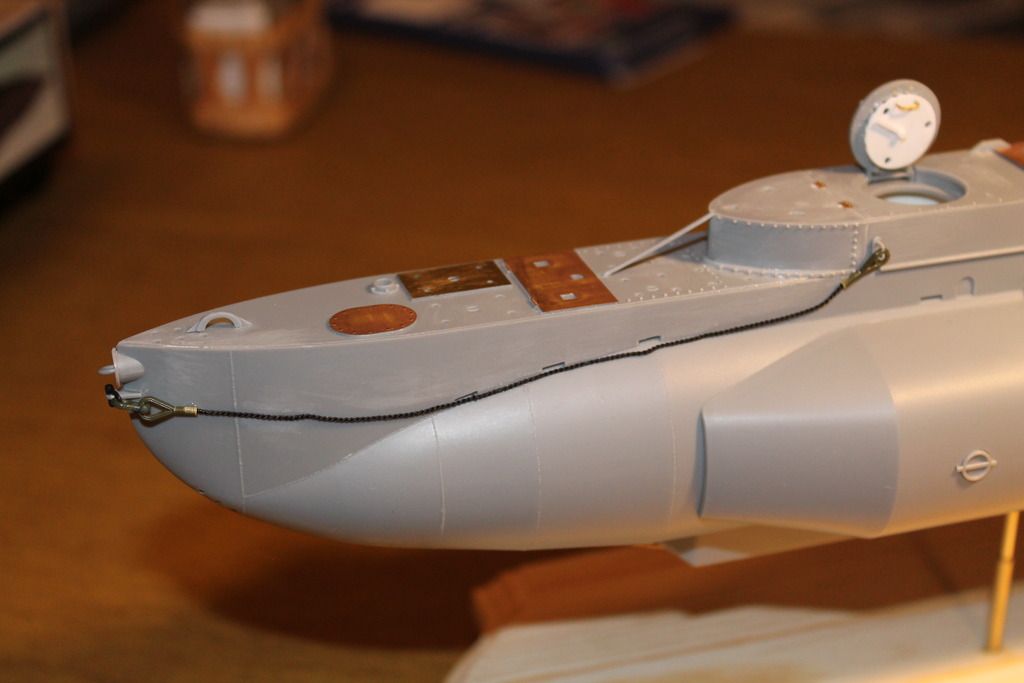

Merit includes these parts but the instructions forget to mention the actual cable, along with the ones that support the 'Side Cargoes'.



I used Nylon Beading Cord. It's used for making bracelets, and available in the crafts section at Hobby Lobby or Michael's. It can be attached with superglue, takes paint, and can be dry-brushed.

Despite these niggles, I'd recommend this kit to anyone interested in the subject. It's the only reasonably priced game in town in this scale anyway. The fit is very good. I just needed a little putty along the keel and lower hull. The deck is molded to the right-side hull half. Assembly is quick and easy. There are a lot of small parts that require careful clean-up however. One mistake that Merit makes is the linkages for the diving plane. They have them on both sides of the hull, they should only be on the starboard side.

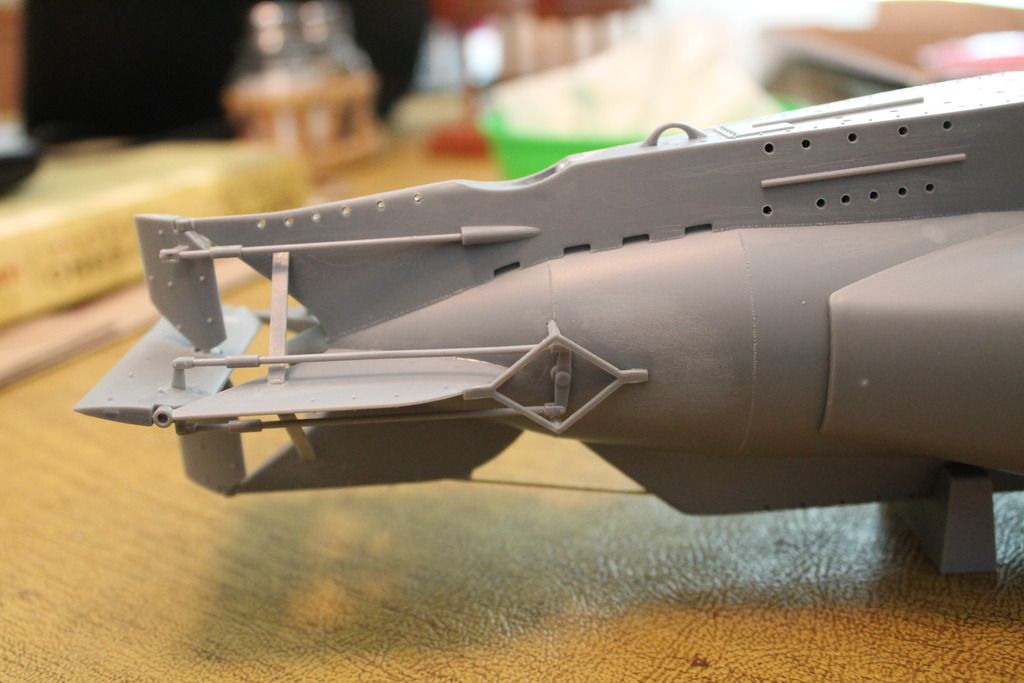

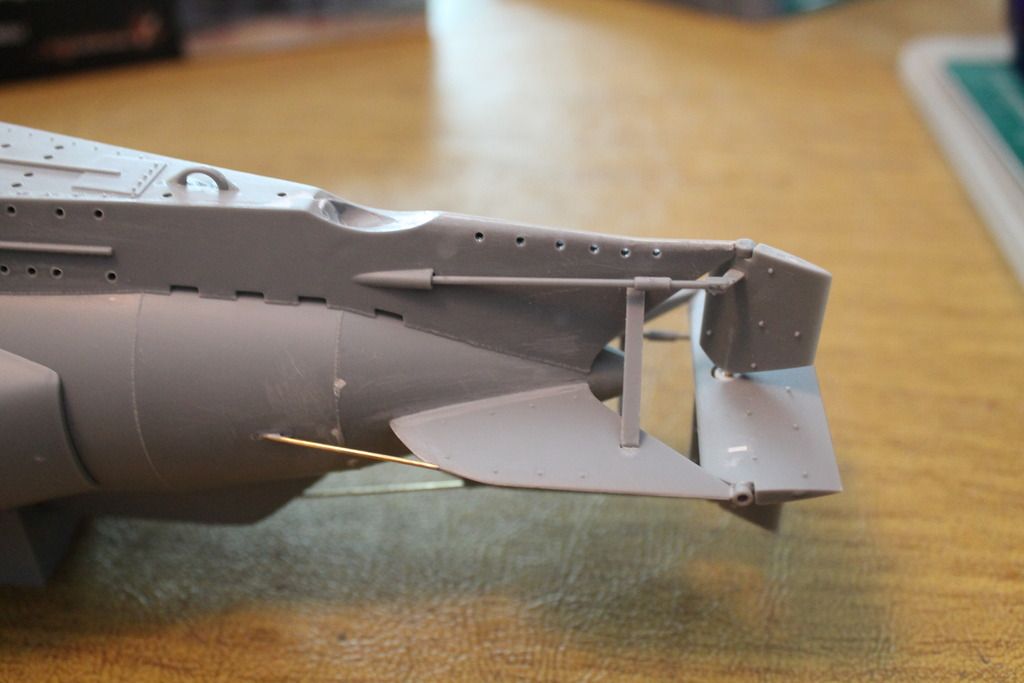

A simple matter to correct, fill a couple of holes and add the guard that runs from the hull to the fin, I used brass rod for mine. With a little effort the planes, rudder, and their linkages can be made movable. Although the linkages are supposed to snap together, the joints are weak and they would need to be drilled and pinned together. While on the subject of guards, I'd recommend replacing the kit supplied plastic ones (C2, C3, & C6) with brass rod. The plastic ones are delicate,and prone to breakage (ask how I know). It also saves on cleaning up those parts.

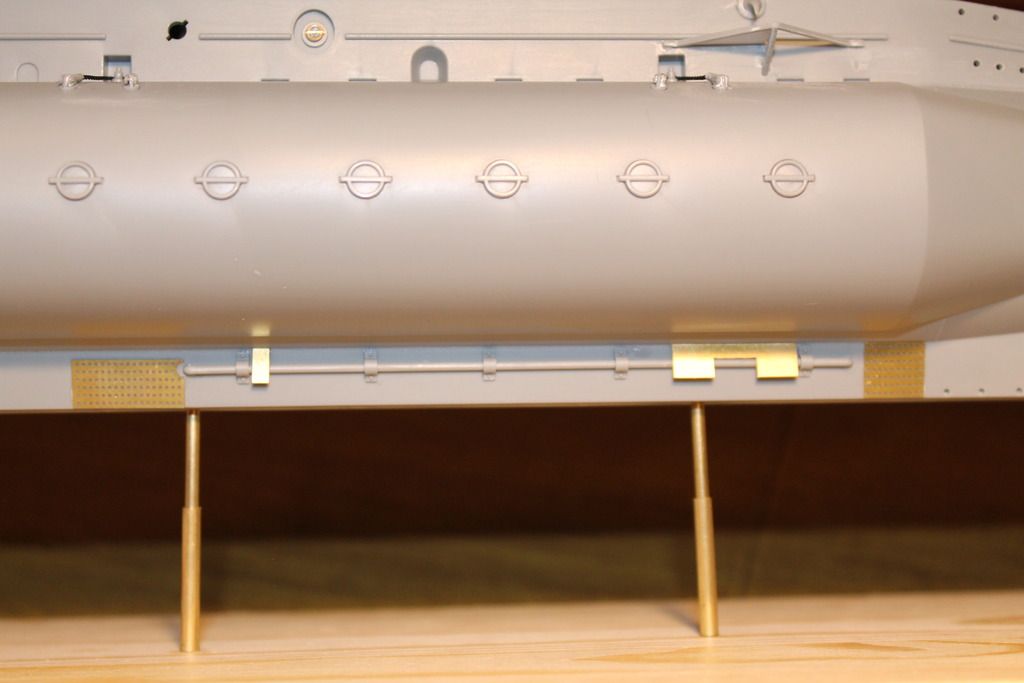

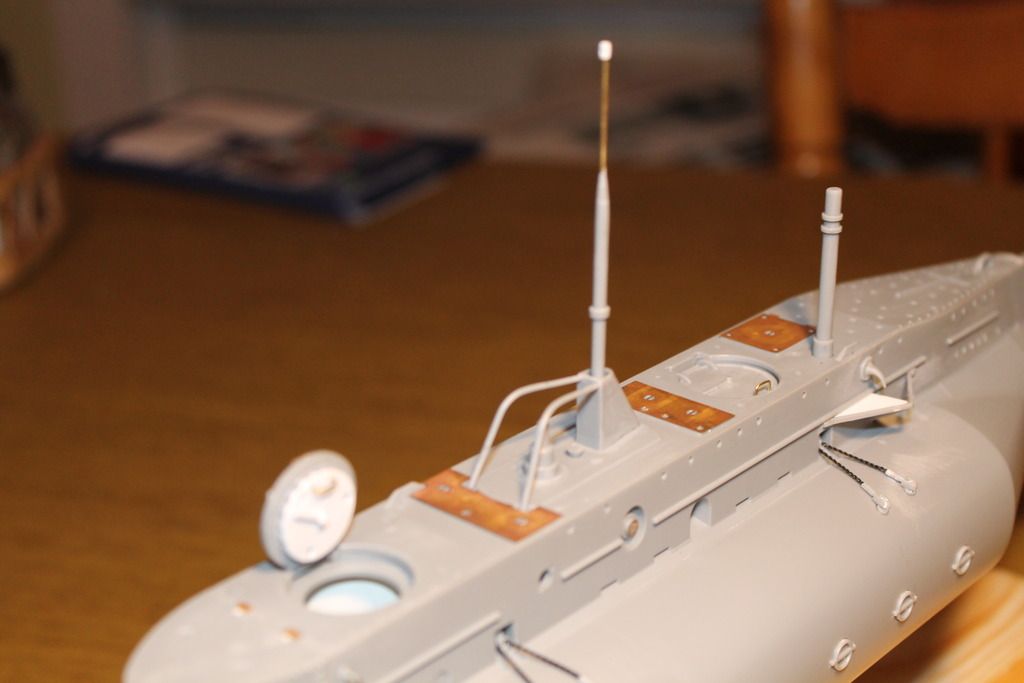

I mentioned Eduard's set earlier, while not absolutely essential, it does improve the kit. The kit supplies a small PE fret which includes these plates along the keel.



However, the kit PE parts are merely dimpled, while Eduard's are actual holes and look nicer. Also, they'll take a wash better than the kit's parts. Eduard also supplies some small bits and pieces and some deck hatches.





Again, not essential to complete a decent looking model, but an improvement in appearance (BTW I don't own stock in Eduard, nor am I a paid spokesman for them). You might also note in the photo, the periscope. It needs a little correction if you plan on displaying it raised. The snorkel can benefit from a little TLC.



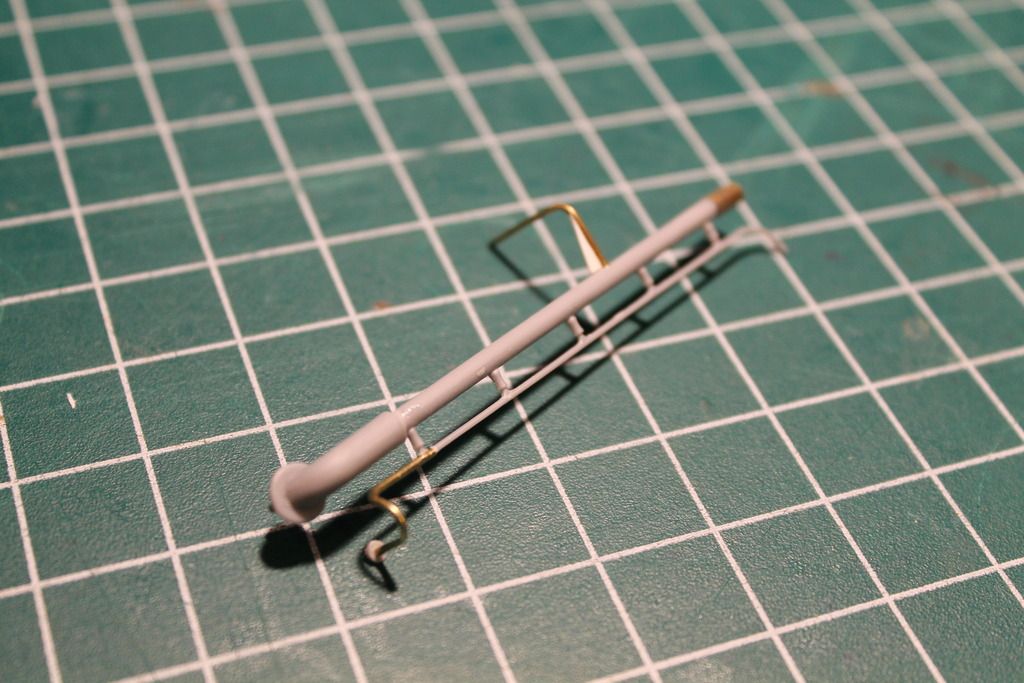

Knowing it would break almost certainly, I replaced part C1 with brass rod and added the small triangular brace with thin card stock. Eduard supplied the perforated upper section. It was my 1st attempt at rolling a flat PE piece into a cylinder, and was thankfully easier than I expected, or should I say feared. The snorkel can be left movable. I plan on leaving mine lowered and added the wire lead that should go from the antenna to the left side of the hull.

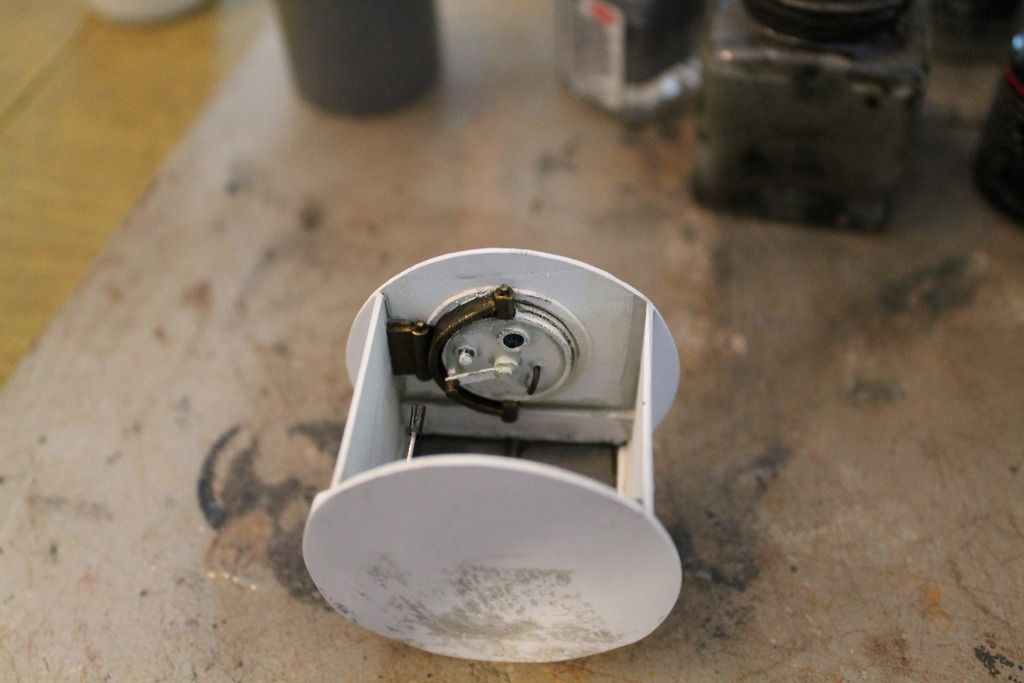

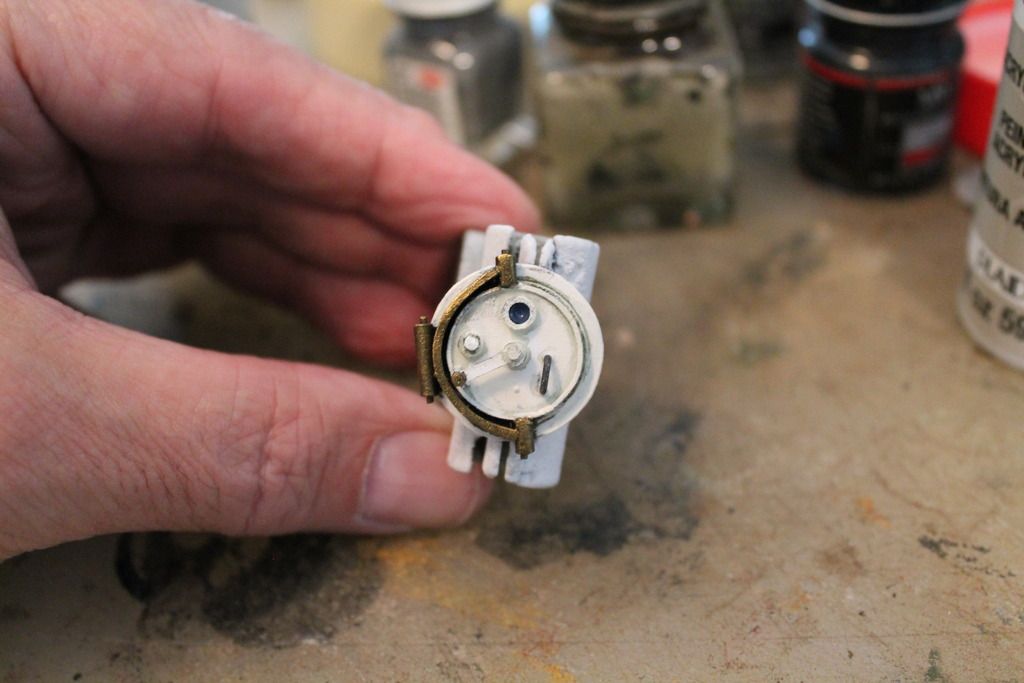

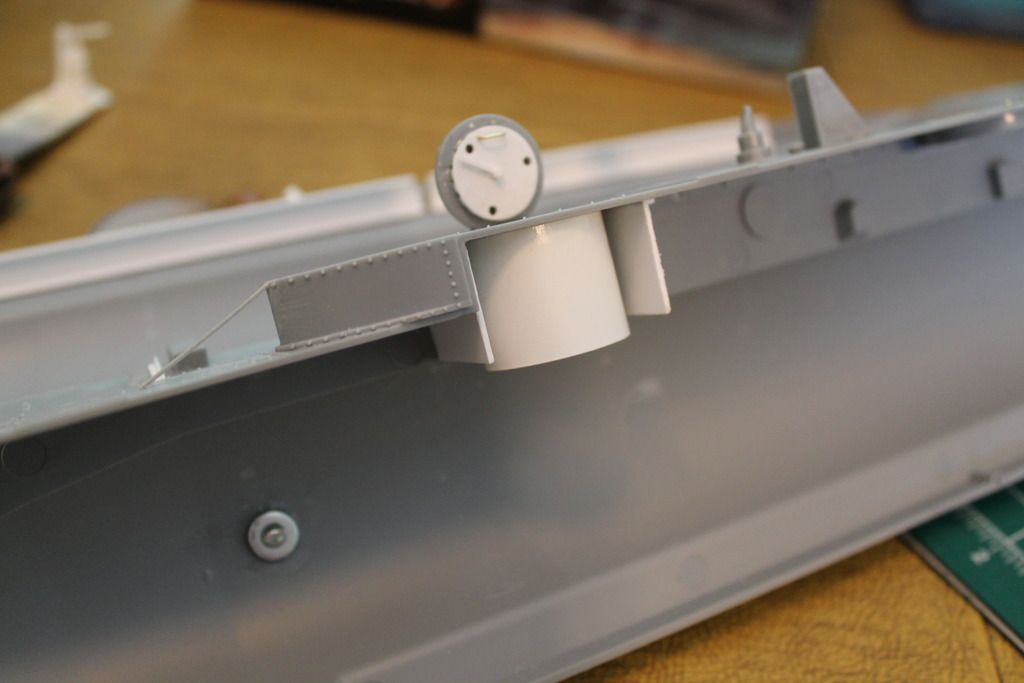

I wanted to leave a hatch open, for visual interest. Being afflicted with AMS, I didn't want to look into a "Black Hole". So I did what anyone afflicted with this dread condition would do, scratched a partial interior. The Wet/Dry Compartment was used by the diver to exit and enter. Pictures were hard to come by, so I make no claims for 100% accuracy. But, being a firm believer in "anything is better than nothing", I proceeded. 1st, the escape trunk.



Next, the hatch between the compartments.





One of my 'references' was the film, "Above Us The Waves". In one scene, where a diver enters this compartment, I noticed what looked like a hand pump. Here's my interpretation.





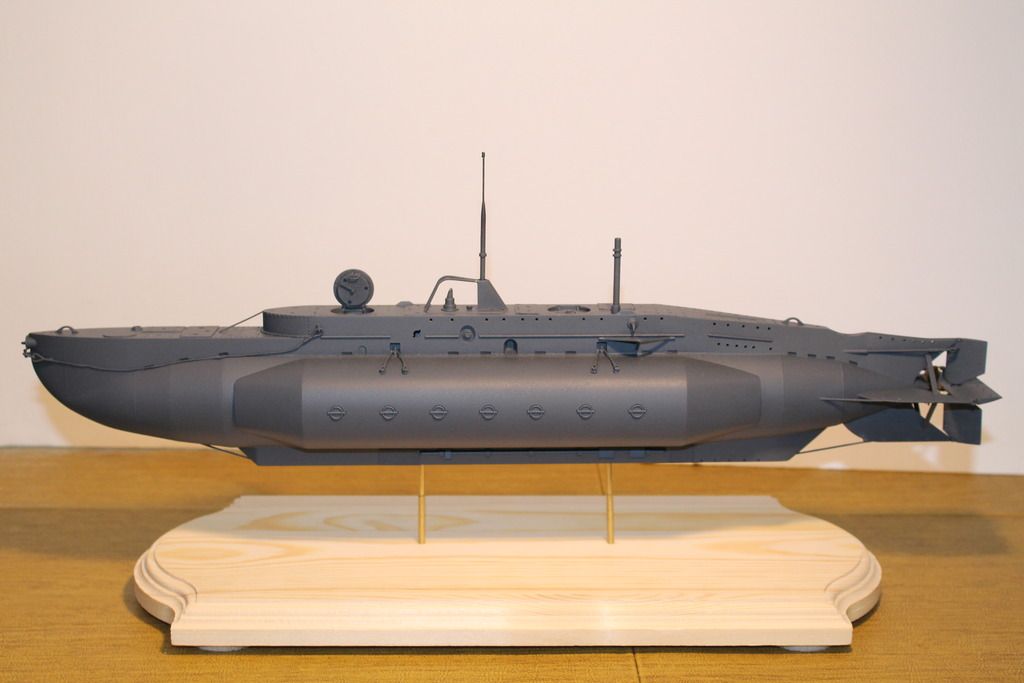

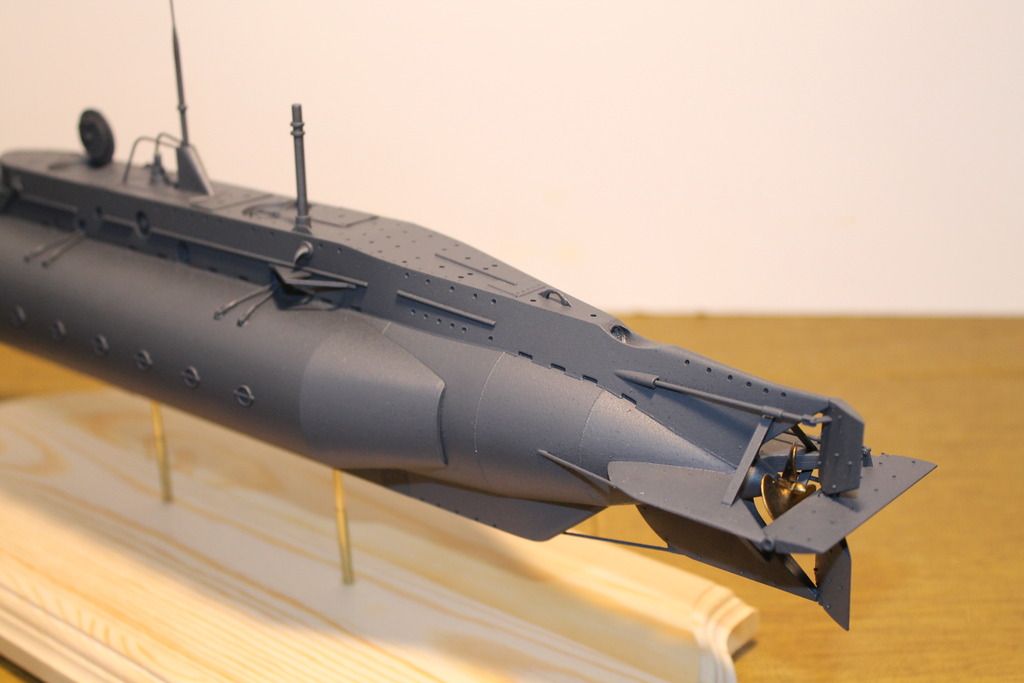

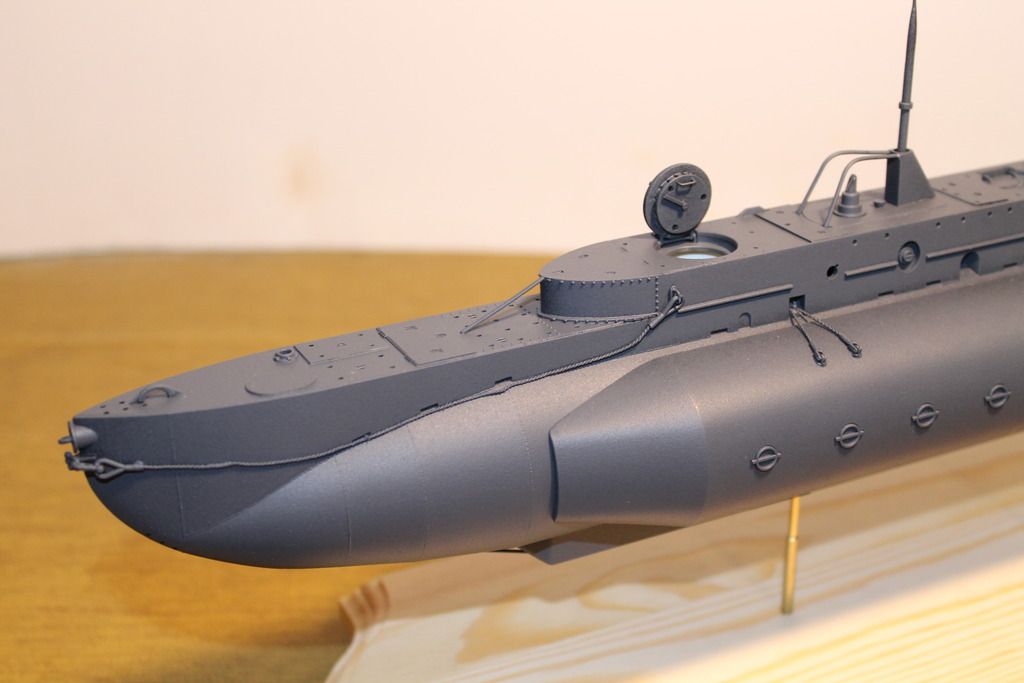

Not a lot can be seen through the hatch, but I'm happy with the result. Unfortunately I couldn't get a decent photo of it completed and installed. To finish up, I got some paint on the boat, so I'll leave you with a few pictures of where it stands.







That' all for now. Next up, some weathering, and one or two crew members on deck. Al
RedDuster
Visit this Community
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 5,554 posts
Model Shipwrights: 5,128 posts
Posted: Sunday, July 10, 2016 - 11:17 PM UTC
Very nice job indeed Al,

puts my OOB build to shame. Crew figures are a good thing, I used one, just to give a sense of scale.

Cheers

Si
Grauwolf
#084
Visit this Community
Quebec, Canada
Joined: September 14, 2005
KitMaker: 2,167 posts
Model Shipwrights: 1,120 posts
Posted: Monday, July 11, 2016 - 03:56 AM UTC
Al,
Very nice job on that sub! and your addition of the extra detail really makes it unique.
Do you plan on some weathering?
Cheers,
Joe
TAFFY3
Visit this Community
New York, United States
Joined: January 21, 2008
KitMaker: 2,409 posts
Model Shipwrights: 1,238 posts
Posted: Monday, July 11, 2016 - 05:20 AM UTC

Quoted Text

Very nice job indeed Al,

puts my OOB build to shame. Crew figures are a good thing, I used one, just to give a sense of scale.

Cheers

Si



Thanks, Simon. I like to use a figure for the same reason and a little human interest. Al
TAFFY3
Visit this Community
New York, United States
Joined: January 21, 2008
KitMaker: 2,409 posts
Model Shipwrights: 1,238 posts
Posted: Monday, July 11, 2016 - 05:22 AM UTC

Quoted Text

Al,
Very nice job on that sub! and your addition of the extra detail really makes it unique.
Do you plan on some weathering?
Cheers,
Joe



Thanks, Joe. Yes, I do plan on some weathering. Don't think these boats got too beat-up though, so I'll keep it light. Al
Biggles2
Visit this Community
Quebec, Canada
Joined: January 01, 2004
KitMaker: 6,692 posts
Model Shipwrights: 760 posts
Posted: Tuesday, July 12, 2016 - 04:46 AM UTC
What scale is this...1/35; 1/48; 1/72?
TAFFY3
Visit this Community
New York, United States
Joined: January 21, 2008
KitMaker: 2,409 posts
Model Shipwrights: 1,238 posts
Posted: Tuesday, July 12, 2016 - 05:26 AM UTC

Quoted Text

What scale is this...1/35; 1/48; 1/72?



It is 1/35th scale (about 18" long). Al
TAFFY3
Visit this Community
New York, United States
Joined: January 21, 2008
KitMaker: 2,409 posts
Model Shipwrights: 1,238 posts
Posted: Tuesday, July 12, 2016 - 08:08 PM UTC
A small update, got the snorkel mounted, in the retracted position.



Also added some washes, they look starker in the photos for some reason.







And some details painted.

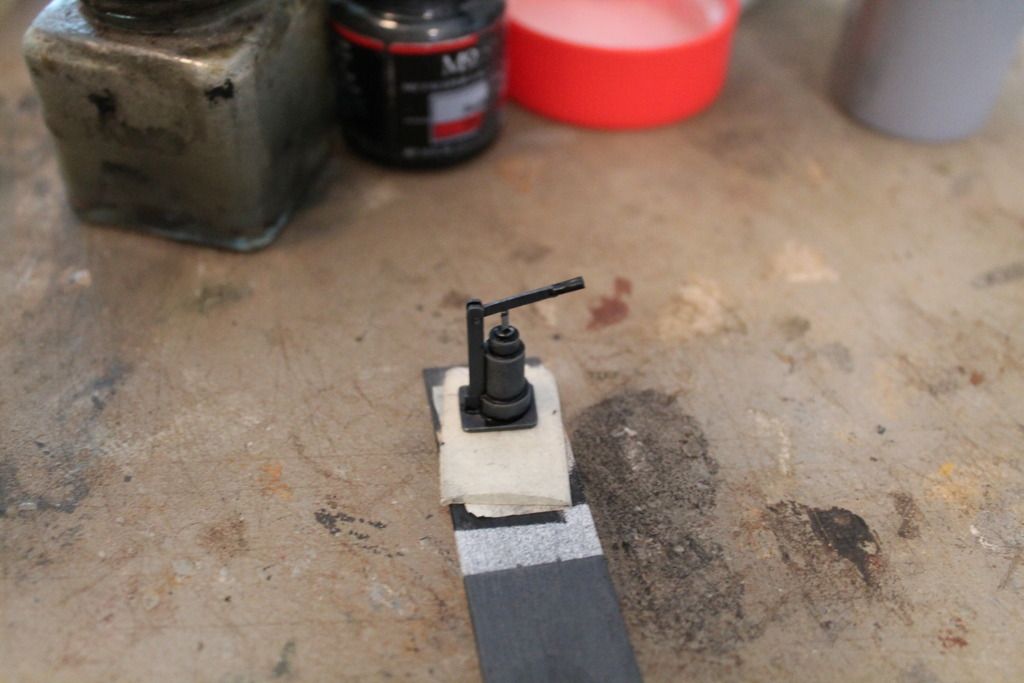

The night periscope is molded in the retracted position, and has a flat face. So I drilled it out and used a drop of epoxy to simulate the glass lens. That tube aft of the attack periscope is a Projector Compass which was also retractable. Merit provides a part so that you can show it lowered if you prefer. That's it for now, thanks for looking. Al (P.S.) The 'Side Cargoes' weren't glued into position on this model. They come molded with two hollow posts on the inside that fit through two corresponding holes in each hull half. I used two small screws with a couple of washers to secure each one into place. Figured it would be neater, easier, and look more prototypical. Al
