Pyro Chinese War Junk build
RussellE
#306
Visit this Community
Victoria, Australia
Joined: June 27, 2010
KitMaker: 1,643 posts
Model Shipwrights: 1,423 posts
Posted: Sunday, January 29, 2017 - 10:23 PM UTC
looking very nice Tim
TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Friday, February 10, 2017 - 12:25 PM UTC
Thanks Russ!

After cementing the kit stand and the plastic battery case together, I gave the new unit an overall coat of Tamiya acrylic Desert Yellow (XF-59) followed with a glaze of Windsor and Newton Burnt Umber and Grumbacher Yellow Ochre oils. Now “glaze” may sound fancy, but it is just an artsy term for a thin, semi-transparent layer of pigment which modifies the appearance of the underlying paint layer. In this case I slathered the oil paints over the acrylic yellow base color and then took most of it off with a clean paintbrush.
 photo 99773540-7a62-4a95-a6a3-1986976439fd_zpsmgcakhna.jpg photo 4f1b1d98-8a46-4528-900a-9419b5862e6f_zpspxuccocr.jpg
This simple technique is a quick, handy way to make plastic look like wood!

 photo ee43bc4f-a982-452c-9715-c0eafe120f97_zps7fmpugls.jpg
Normally I would set the base as a last step, but I attached it now to protect the wires protruding from the hull. The awning supports and rails are now secured aboard as well.
Namabiiru
#399
Visit this Community
Virginia, United States
Joined: March 05, 2014
KitMaker: 2,224 posts
Model Shipwrights: 41 posts
Posted: Friday, February 10, 2017 - 01:04 PM UTC
That's looking fantastic, Tim!

YellowHammer
Visit this Community
Alabama, United States
Joined: March 28, 2006
KitMaker: 342 posts
Model Shipwrights: 111 posts
Posted: Friday, February 10, 2017 - 06:18 PM UTC
Can't get enough of this build. She's looking great Tim.
RedDuster
Visit this Community
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 4,384 posts
Model Shipwrights: 3,986 posts
Posted: Friday, February 10, 2017 - 09:15 PM UTC
Hi Tim,

Great to see you back on this one.

Very neat job getting the wood effect, very subtle, it is easy to overdo something like that.

Cheers

Si
Kevlar06
Visit this Community
Washington, United States
Joined: March 15, 2009
KitMaker: 894 posts
Model Shipwrights: 45 posts
Posted: Saturday, February 11, 2017 - 05:39 PM UTC
Getting close to the end here Tim-- what's next? I think Pyro made a model of Drake's Golden Hind if I'm not mistaken-- built it as a kid 55 years ago-- do you know if it's still around?
VR, Russ
KoSprueOne
Visit this Community
Myanmar
Joined: March 05, 2004
KitMaker: 3,321 posts
Model Shipwrights: 6 posts
Posted: Sunday, February 12, 2017 - 04:44 AM UTC
Wow, that does look realistic.




TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Sunday, February 12, 2017 - 11:14 AM UTC
Mark, John, Si, & KoSprueOne – thanks!


Quoted Text

Getting close to the end here Tim-- what's next? I think Pyro made a model of Drake's Golden Hind if I'm not mistaken-- built it as a kid 55 years ago-- do you know if it's still around?
VR, Russ



Russ, Pyro did make a Golden Hind (part of their first series of ship models in the 1950s) ...but is wasn’t one of their better efforts. The kit is easy to assemble and has reasonably good detail, but for some reason the guys at Pyro decided to depict the sleek race-built galleon hull as something that looks more like a walnut!

I do have one of those old kits in my stash, but so far I haven’t been able to bring myself to build it...

YellowHammer
Visit this Community
Alabama, United States
Joined: March 28, 2006
KitMaker: 342 posts
Model Shipwrights: 111 posts
Posted: Sunday, February 12, 2017 - 01:10 PM UTC
Hey Tim,
Slightly off topic question here. Since you have such talent for painting these old plastic sailing ship kits I thought I would bounce it off you. I have an old Lindberg Barbary Pirate Felucca kit in 1/250 scale. The kit is pretty basic, but I'm going to try and dress it up some after filling the large holes in the hull for the grossly over scale sweeps. I want to put some color on the hull, probably in red. I want to have the red faded and weathered. Would your oil wash technique work? I didn't know if you've tried it on anything other than a natural wood look. If you have any thoughts or recommendations I would appreciate it.
John
TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Sunday, February 12, 2017 - 02:44 PM UTC
Hi John,

The oil-over-acrylic technique works just fine for other colors as well as for natural wood effects, since the principle is the same. The acrylic (I like Tamiya, but really any acrylic will work) is the base color. The oils create a thin filter of color which alters that base shade, but since the oil solvents don’t attack the underlying acrylic you can thin and experiment with different oil color combinations until you find one you like. I like Raw Umber, Burnt Umber, and Burnt Sienna oils, but white, yellow, green or whatever can work too. It just depends on what effect you want.

One thing; hobby enamels can work for this, but artist’s oils are FAR superior. I’d recommend investing in a tube each of Raw Umber, Flake White, and Black to start with. Grumbacher and Windsor & Newton are good. They are a little expensive, but they have vivid pigments and yet can provide a translucency that will make your paint jobs really pop.

Experiment on a junked model and you will be amazed at what you can come up with!

JJ1973
#345
Visit this Community
Niedersachsen, Germany
Joined: August 22, 2011
KitMaker: 1,250 posts
Model Shipwrights: 1,247 posts
Posted: Sunday, February 12, 2017 - 05:30 PM UTC
Once again, beautiful work Tim!!

Your wood effects are really impressive!!

Cheers,
Jan
RussellE
#306
Visit this Community
Victoria, Australia
Joined: June 27, 2010
KitMaker: 1,643 posts
Model Shipwrights: 1,423 posts
Posted: Sunday, February 12, 2017 - 10:47 PM UTC
I'd be hard pressed to tell the difference between your painting skills and a real piece of timber, Tim!

Fantastic work!
TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Thursday, February 16, 2017 - 01:58 AM UTC
Thanks Jan and Russell – I certainly have fun painting, but Pyro’s positively theatrical depictions of wood surfaces really do help bring out those wood effects!

The kit-provided winches on the aft deck, on the other hand, were uninspiring...
 photo 400e51f8-549d-40c3-98b3-47cbe3f9b133_zpsrcsgudud.jpg

...so I built replacements using HO scale model railroad brass brake wheels and plastic rod.
 photo 6cc747f1-0488-4c5d-a2ba-1ffdc6a8fac9_zpsr2s49n3a.jpg photo 908ad65f-a689-4ada-9a07-9c979071079d_zpsr7kwqtfo.jpg

These hand reels, used for lifting the rudder, would most likely have been outfitted with natural fiber cables; I loaded up them up with thick thread left over from a Revell Viking ship project.
 photo Pyro Chinese War Junk winches done1_zpshtelfwd2.jpg
 photo Pyro Chinese War Junk winches done2_zpsxwb4bibe.jpg
Much better!
Kevlar06
Visit this Community
Washington, United States
Joined: March 15, 2009
KitMaker: 894 posts
Model Shipwrights: 45 posts
Posted: Thursday, February 16, 2017 - 04:04 AM UTC

Quoted Text

....Pyro did make a Golden Hind (part of their first series of ship models in the 1950s) ...but is wasn’t one of their better efforts. The kit is easy to assemble and has reasonably good detail, but for some reason the guys at Pyro decided to depict the sleek race-built galleon hull as something that looks more like a walnut!
I do have one of those old kits in my stash, but so far I haven’t been able to bring myself to build it...




Tim,
The Junk is looking great-- your painting techniques have taken this old kit to a whole new level. You're right about the "walnut" shape of the Golden Hind-- I'd forgotten about that, but it might look ok- it reminds me of those "egg planes" the folks over at Aeroscale do. Maybe you could build it as a caricature. Can't wait for the Junk to get some sails next!
VR, Russ
YellowHammer
Visit this Community
Alabama, United States
Joined: March 28, 2006
KitMaker: 342 posts
Model Shipwrights: 111 posts
Posted: Thursday, February 16, 2017 - 08:22 AM UTC
Tim,
Thanks for the info on the paints. I'm going to give them a try. I also really like what you did with the winches. They look great. Did you ever decide about crew figures on deck? I know the ones in the cabin are great.
John
RedDuster
Visit this Community
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 4,384 posts
Model Shipwrights: 3,986 posts
Posted: Friday, February 17, 2017 - 06:45 AM UTC
Very neat job on the winches Tim,

Keep up the great work.

Cheers

Si
TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Friday, February 17, 2017 - 04:06 PM UTC
John and Si, thanks for your comments about the winches. The kit parts were ugly, but fortunately the fix turned out to be straightforward. As for the crew, the two in the cabin would be pretty useless for running the ship, so I guess I’ll have to put one or two others on deck as well!

Russ, I like your idea of a Pyro Golden Hind caricature “egg boat” – you should do it!

RedDuster
Visit this Community
England - South East, United Kingdom
Joined: March 01, 2010
KitMaker: 4,384 posts
Model Shipwrights: 3,986 posts
Posted: Saturday, February 18, 2017 - 08:40 AM UTC
Great comment Tim,



A watch on deck might be a good idea!

Cheers

Si
JJ1973
#345
Visit this Community
Niedersachsen, Germany
Joined: August 22, 2011
KitMaker: 1,250 posts
Model Shipwrights: 1,247 posts
Posted: Sunday, February 19, 2017 - 06:11 AM UTC
Tim,

I simply love your way of building these kits, and your Junk here in particular!!

I agree with you and Si, some more watch standers seems quite necessary. If you choose to put two more on the deck, be careful that they don't get along with each other as good as the ones already there

Cheers,
Jan
TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Thursday, February 23, 2017 - 01:06 PM UTC
Thanks guys! I hope to get the working deck crew on board after sorting out the tiller, awnings, sampan, and various deck details this weekend. For now, there's one last touch to be added to the hull - the eyes.

The kit had originally come with round openings at the bow for Western-style hawse holes, but the Chinese didn’t use hawser openings for anchor cables, opting instead to simply haul the anchors up the flat bows and secure them on deck. What the Pyro kit designers mistook for hawse holes were in fact the “dragon eyes” so characteristic of Chinese and other Asian vessels.
 photo Pyro Chinese War Junk anchors Lindberg_zpsvivthsk4.jpg
According to Hans K. Van Tilburg’s Chinese Junks on the Pacific - Views from a Different Deck, the eyes were small painted wooden panels attached to the hull which represented an animistic, “portal by which the sailors imagine that the vessel can espy sunken rocks, schoals, and other dangers of the deep.”
 photo Pyro Chunese Junk eye_zpsqssuq1lk.jpg

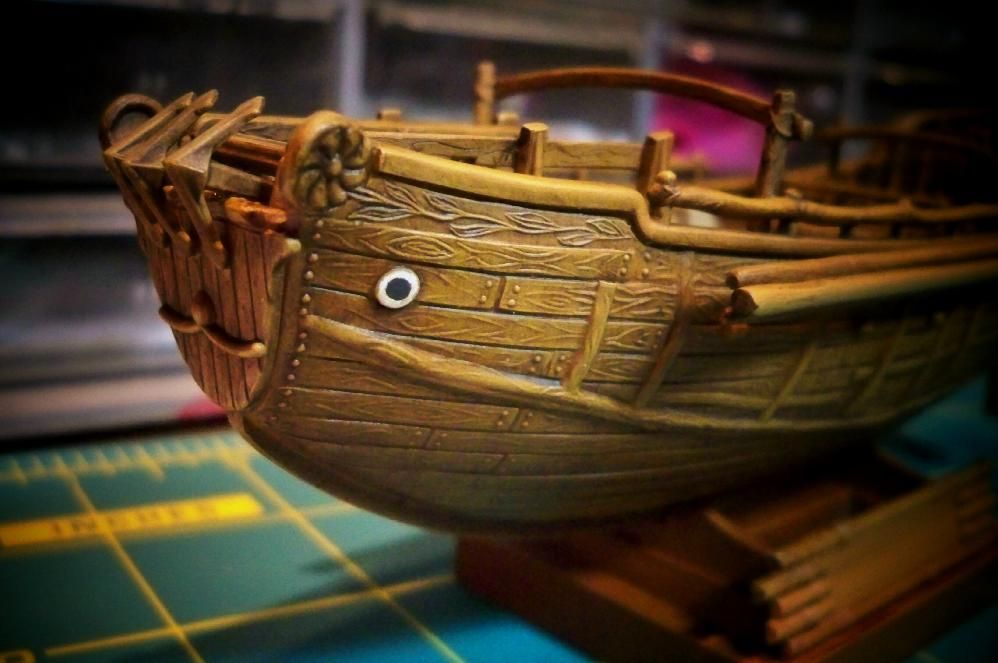

Accordingly, I covered the holes over with plastic discs and painted the eyes on them.
 photo Pyro Chunese Junk eye painted_zpsnarapk13.jpg
These eyes were serious business. Van Tilburg also relates a story of a 19th Century British traveller in China: “As I was sailing slowly onwards one of my boatmen seized his broad hat, and, rushing past me to the bows of the boat, placed it over one of the eyes. Several other boats in company were also blinded in the same way; some with hats, others with coats, cloaks, or anything that came readiest to hand. I did not understand this proceeding at first, but soon found out the cause. A dead body was floating up the stream with the tide, and if the boat is allowed to see an object of this kind some evil is sure to happen to the passengers or crew before the voyage is over.”

RussellE
#306
Visit this Community
Victoria, Australia
Joined: June 27, 2010
KitMaker: 1,643 posts
Model Shipwrights: 1,423 posts
Posted: Friday, February 24, 2017 - 09:35 PM UTC
it's the eyes! They follow you around the room!

great research Tim! Really paying off
TimReynaga
Staff MemberNews Writer
MODEL SHIPWRIGHTS
Visit this Community
California, United States
Joined: May 03, 2006
KitMaker: 938 posts
Model Shipwrights: 757 posts
Posted: Saturday, February 25, 2017 - 12:31 PM UTC
The monochromatic boat seemed in need of a bit of color, so I shot the awnings with Tamiya Flat Red (XF-7) acrylic.
 photo dd9f7ff9-431c-47a5-b4d9-443cd4ecc2f1_zpsxjavvwf6.jpg photo 9b3ef8e1-b3f5-4387-b061-c663efd13192_zpsovm4d1yo.jpg
To give the old, torn awnings a nice grungy look, I added some more red mixed with a little Tamiya Field Grey (XF-65) for shadows followed by a wash of the same Raw Umber artist’s oil used to stain the wood.
RussellE
#306
Visit this Community
Victoria, Australia
Joined: June 27, 2010
KitMaker: 1,643 posts
Model Shipwrights: 1,423 posts
Posted: Sunday, February 26, 2017 - 08:25 AM UTC
A nice splash of color there, Tim.

Gonna look great with the sail on!
Fordboy
Visit this Community
Auckland, New Zealand
Joined: July 13, 2004
KitMaker: 2,070 posts
Model Shipwrights: 1,503 posts
Posted: Monday, February 27, 2017 - 06:10 AM UTC
Ahoy Tim

I have been following along on this great build from the start.

I totally admire your fortitude to pick it up again and soldier on.

Cheers


Sean
JJ1973
#345
Visit this Community
Niedersachsen, Germany
Joined: August 22, 2011
KitMaker: 1,250 posts
Model Shipwrights: 1,247 posts
Posted: Monday, February 27, 2017 - 06:29 AM UTC
Looks really good, Tim - this one is getting better and better!!

Cheers,
Jan
